Product Description

Product Specification:

Receiver
Channel Spacing	6.25KHz / 12.5KHz / 25KHz
Sensitivity Analog	0.3μV(12dB SINAD)
	0.22μV(typ.) (12dB SINAD)
	0.4μV(20dB SINAD)
Sensitivity	0.28μV(3%BER@12.5kHz)
Digital	0.3μV (3%BER@6.25kHz)
Channel Selective	62dB @6.25kHz
	70dB @12.5kHz
	75dB @25kHz
Intermodulation	70dB
Block	95dB
Spurious response suppression	90dB
Audio Output power（<5%）	2.0W / 8Ω
Conducted emission spurious	<-57dBm
Transmitter
Output Power	5~50W
Channel Spacing	6.25kHz / 12.5kHz / 25kHz
Emission Spurious	-36dBm(≤1 GHz)
Emission Spurious	-30dBm(>1 GHz)
FM Modulation	16K0F3E @25kHz
FM Modulation	11K0F3E @12.5kHz
4FSK Digital Modulation	Only Data 7K60FXD @12.5kHz
	Voice & Data 7K60FXW@12.5kHz
	Only Data 4K00F1D@6.25kHz
	Voice & Data 4K00F1W @6.25kHz
Audio Distortion	≤3%
Audio Response	+1 ~ -3dB
FM Hum & Noise	40dB @12.5KHz
FM Hum & Noise	45dB @25KHz
Digital FSK Error	<1.5%
Adjacent channel Power	60dB @12.5KHz
Adjacent channel Power	70dB @25KHz
Adjacent Channel Transient Power	≤-50dB @12.5KHz ≤-60dB @25KHz
General
Frequency Range	UHF1: 400-470 MHz;
	UHF2: 450-520 MHz;
	UHF3: 350-400 MHz
	VHF: 136-174 MHz
Channel Capacity	500
Zone Capacity	32(MAX.32channels each zone)
Dimension(LxWxH）	420×483×132.5mm
Dimension(LxWxH）	420×483×132.5mm
Weight	15Kg
Input power（AC）	110V/220V
Input voltage(DC)	13.6V±15%
Current（Standby）	<800mA
Current(Transmit）	<11A
Current(Receive）	<1900mA
Frequency stability	±0.5ppm
Antenna Impedance	50Ω
Vocoder type	AMBE+2
RFConnect	Tx（N）、Rx（N）
LCD	800*480pixel, 65536color, 5.0inch
Intelligent IP Controller
CPU	Freescale i.mx6Q 4Core
RAM	1G DDR3
ROM	8G
SD Connector	Micro SD，Max 128G
Display Interface	24bit_RGB
USB Connector	Mini USB2.0 (OTG)
Network Interface	10/100/1000 Mbps Ethernet
* The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.

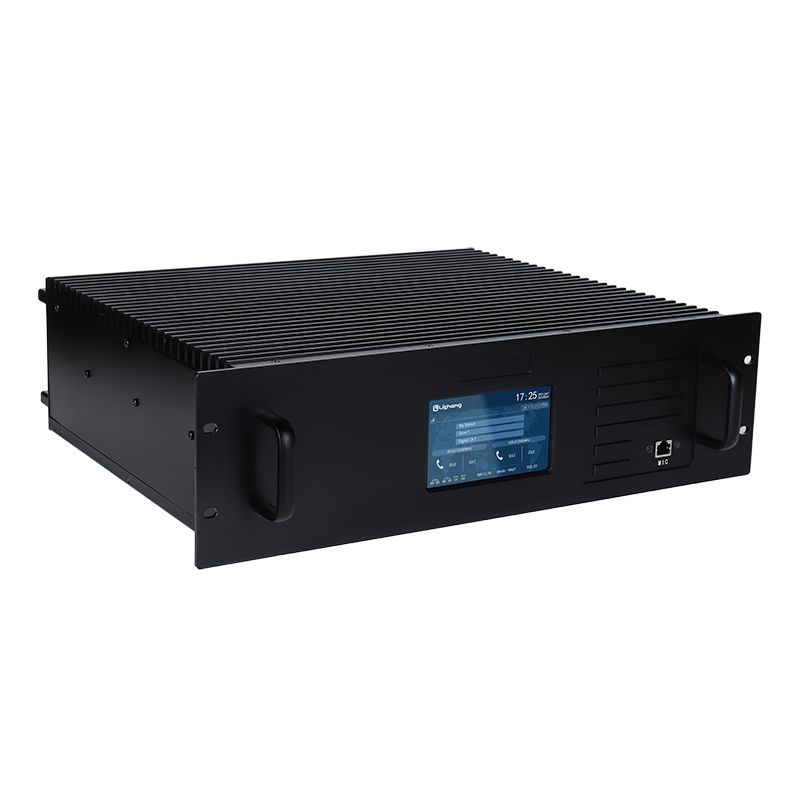

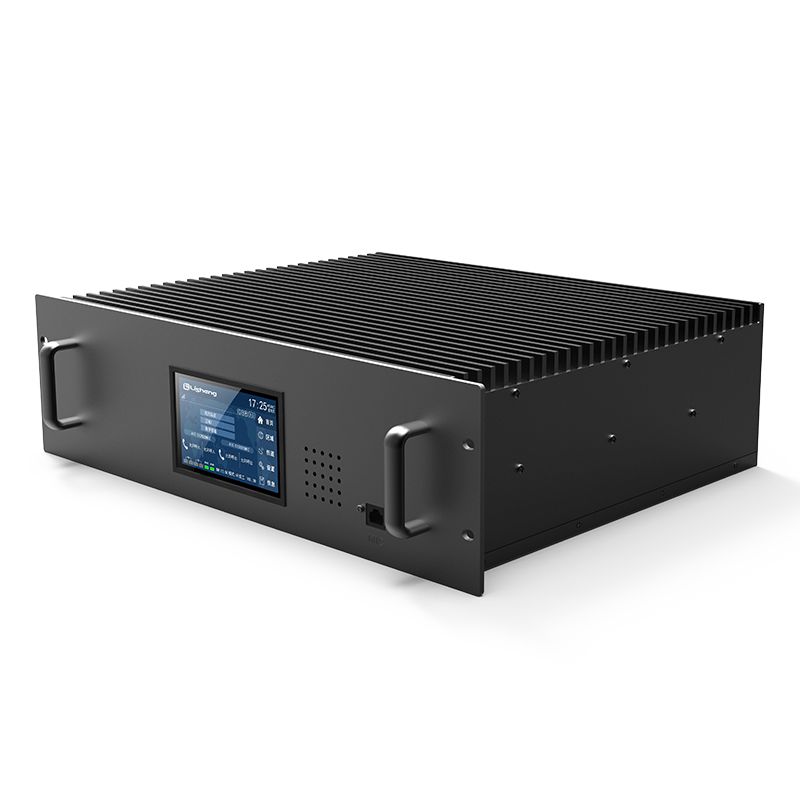

TS-R2000 series repeater is a communication device designed and produced for professional users. It provides avariety of communication formats, IP interconnection function and digital trunking function. It’s designed for public safety, utilities, transportation, energy industry, emergency rescue and other professional users to ensure that communication is always instant and available.

Lisheng is one of the professional Repeater Analogmanufacturers and suppliers in China. Our analog repeaters are designed to enhance the performance of analog communications systems, providing reliable and powerful signal amplification to ensure clear, seamless communications. With their advanced technology and high-quality components, our repeaters extend the range of your analog devices, allowing you to communicate over longer distances without reducing signal strength.

Repeater Simulation is easy to install and easy to use, making it the perfect solution for businesses, organizations, and individuals who require reliable and efficient communications systems. Whether you work on a construction site, manage a large event, or simply need to stay connected in a remote location, our repeaters will ensure you never miss a message or lose touch with your team members.

In addition to superior performance, our repeater simulations feature ruggedized designs that are built to last and stand up to the demands of any environment. Whether you face extreme temperatures, harsh weather conditions, or rough handling, our repeaters will continue to provide superior signal amplification and range extension, ensuring you stay connected no matter what.

Additionally, our repeater simulations are highly versatile and compatible with a wide range of analog communications equipment from different manufacturers. This means you can easily integrate our repeaters into your existing communications system without costly upgrades or replacements. With its plug-and-play functionality, our repeaters are up and running in no time, instantly boosting the performance of your analog equipment.

When it comes to reliability and performance, our repeater simulations are second to none. Its cutting-edge technology and innovative design make it the ultimate solution for enhancing the range and signal strength of analog communications systems. With our repeaters, you can rest assured that your messages will always be received loud and clear, no matter where you are.

All in all, our repeater simulations are the ultimate choice for anyone who needs a powerful and reliable signal booster for their analog communications equipment. Its advanced features, rugged construction, and compatibility with a variety of devices make it the perfect solution for businesses, organizations, and individuals who rely on clear and consistent communications. With our repeaters, you can take your analog communications to the next level, ensuring you never miss a beat.
