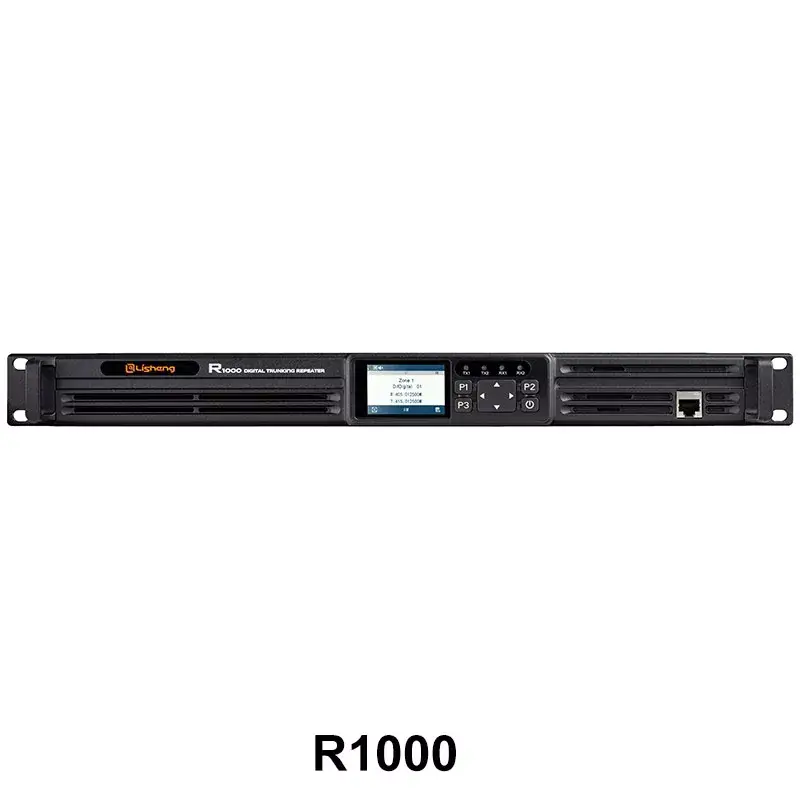

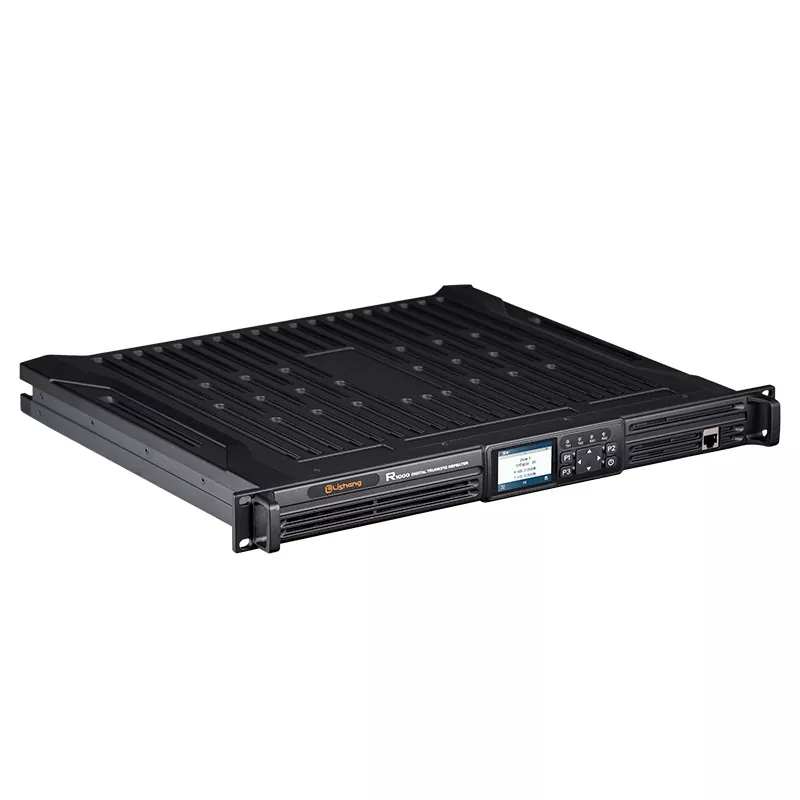

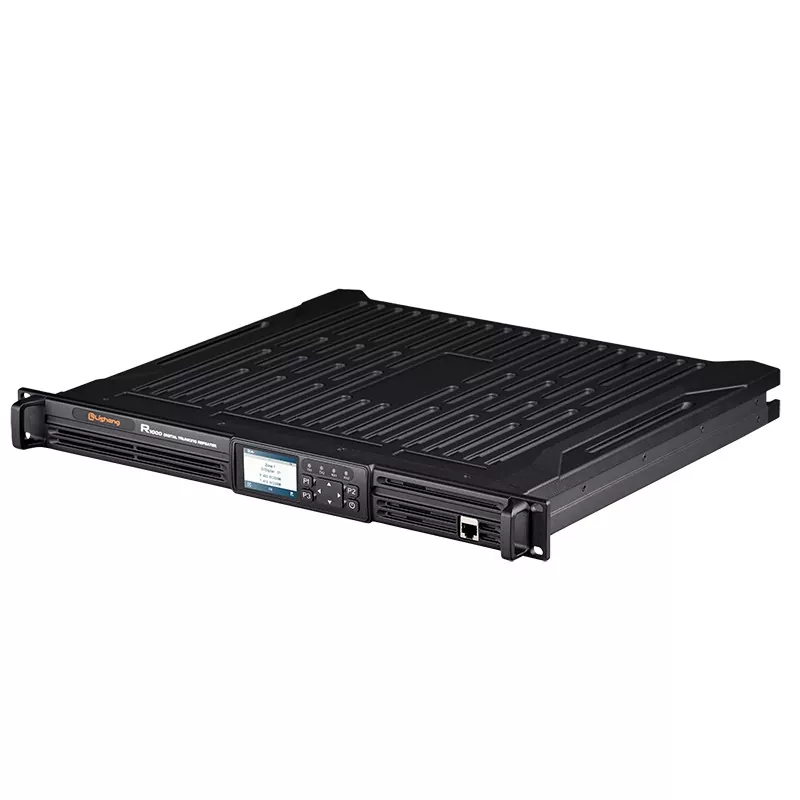

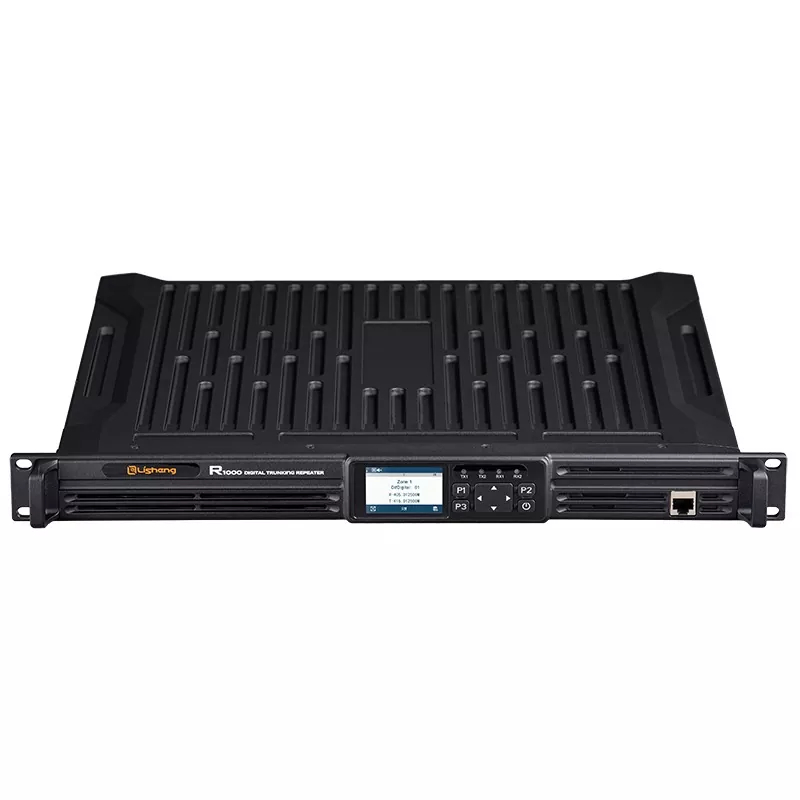

Product Description

Specification Parameters:

General
Frequency Range	400-470MHz,350-400MHz 136-174MHz	Channel Capacity	500
Zones	32	Dimension(WDL)	40548045mm
Weight	Around 7.5kg	Input Voltage（AC）	220V/110V
Input Voltage（DC）	13.6V±15%	Current(Standby)	<800mA
Current(TX)	<11A	Current(RX)	<1900mA
Frequency Stability	±0.5ppm	Antenna Impedance	50Ω
RF Connection	Tx（N）、Rx（N）
Transmitter
Output Power	5-50W	Channel Spacing	6.25KHz/12.5KHz/25KHz
Spurious Emissions	-36dBm(≤1 GHz) / -30dBm(>1 GHz)	FM Modulation	16KOF3E@25kHz/11KOF3E@12.5kHz
4FSK Digital Modulation	Data Only 7K60FXD @12.5KHzVoice & Data 7K60FXE @12.5KHzData Only 4K00F1D @6.25kHzVoice & Data 4K00F1W @6.25kHz	Audio Distortion	≤3%
Audio Response	±1~-3dB	FM Hum and Noise	40dB@12.5KHz/45dB@25KHz
Digital FSK Error	<1.5%	Adjacent Channel Power	≤-60dB @12.5KHz ≤-70dB @25KHz
Receiver
Channel Spacing	6.25KHz/12.5KHz/25KHz	Sensitivity (Analog)	0.18uV(typ.)(FM@12dB SINAD )
Sensitivity (Digital)	0.18uV@5%BER	Adjacent Channel Selectivity	70dB @12.5kHz/75dB @25kHz
Intermodulation	70dB	Blocking	95dB
Spurious Response Rejection Audio	90dB	Audio Output Power(at 5% distortion)	5.0W/4Ω
Conducted Spurious Emissions	<-57dBm

The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above indicators are subject to change without prior notice.

Introducing our new portable radio repeater, the ultimate solution for staying connected in any environment. Whether you're in a remote location, on a construction site or at a remote event, this innovative device will ensure you always have reliable communications.

Our portable radio repeaters are designed to extend the range of two-way radios, allowing you to communicate over longer distances without the need for additional infrastructure. It's compact, lightweight and easy to install, making it the perfect companion for outdoor adventures, emergency response teams and outdoor activities.

This rugged device is built to withstand harsh environments, with a durable casing and rugged construction that can handle any natural conditions. Its portable design means you can easily take it with you wherever you go, and its intuitive controls and user-friendly interface make it simple to operate.

Portable radio repeaters are compatible with a variety of two-way radios, making them a versatile solution for teams and individuals who rely on clear communications in challenging environments. It can be used to extend the range of your existing radio, allowing you to stay in touch with your team even if they are miles apart.

With its long battery life and efficient power management, you can rely on the portable radio repeater to keep you connected for long periods of time without the need for frequent recharging. Its low power consumption and high-performance design make it an essential tool for anyone who needs to maintain constant communications in remote locations.

Setting up a portable radio repeater is a breeze thanks to its plug-and-play functionality and easy-to-follow instructions. You don't need any technical expertise to get it up and running, and it can be deployed in minutes, giving you instant access to an extended range of communications.

Whether you're a hiker, camper, construction worker or event organizer, portable radio repeaters are the perfect solution for staying connected when traditional methods fail. Its rugged design, long battery life and extended range capabilities make it an indispensable tool for anyone who needs reliable communications in challenging environments.

Don’t let distance or barriers get in the way of staying connected with your team. Invest in a portable radio repeater to ensure you have a reliable lifeline when you need it most. With its compact, portable design and unparalleled performance, it's the ultimate communications solution for anyone who needs the best functionality.

Say goodbye to signal loss, unreliable communications and limited range. With portable radio repeaters, you can communicate with confidence knowing you have a reliable and powerful solution at your fingertips. Whether you're in the wilderness, on a construction site or attending a remote event, this innovative device keeps you connected no matter where you go.
